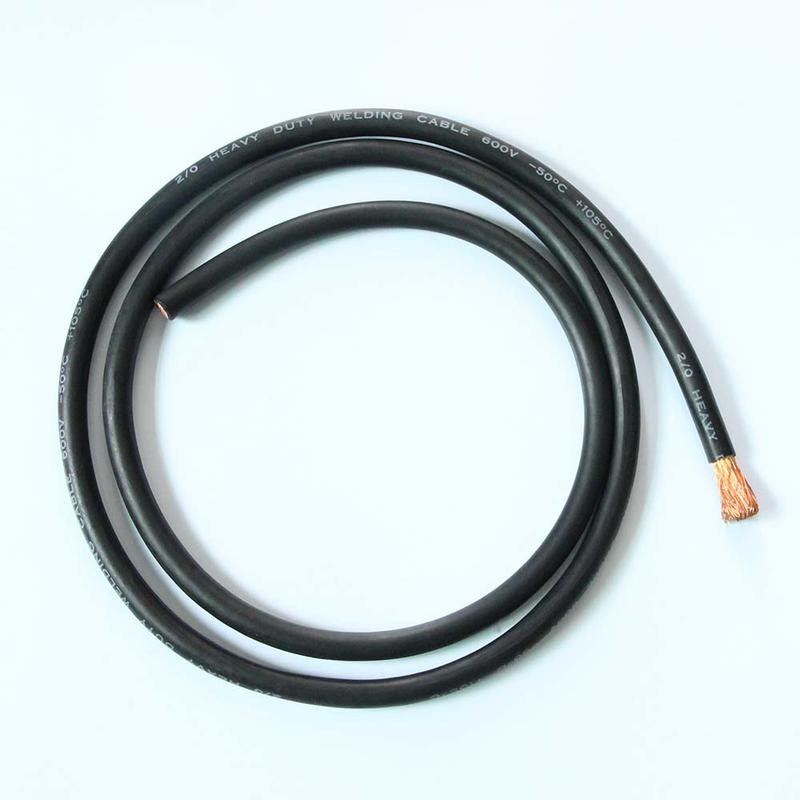

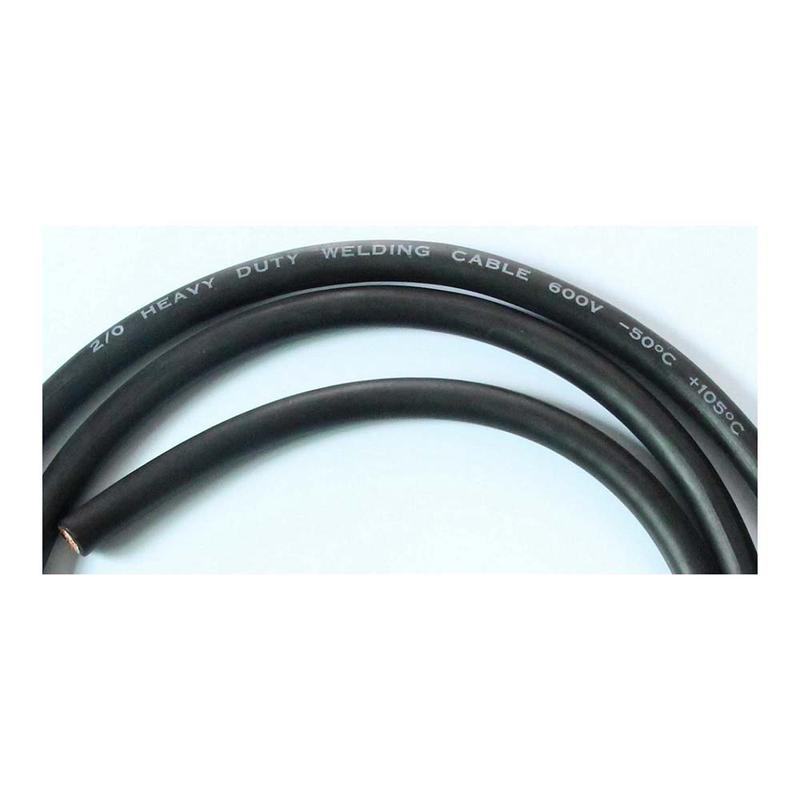

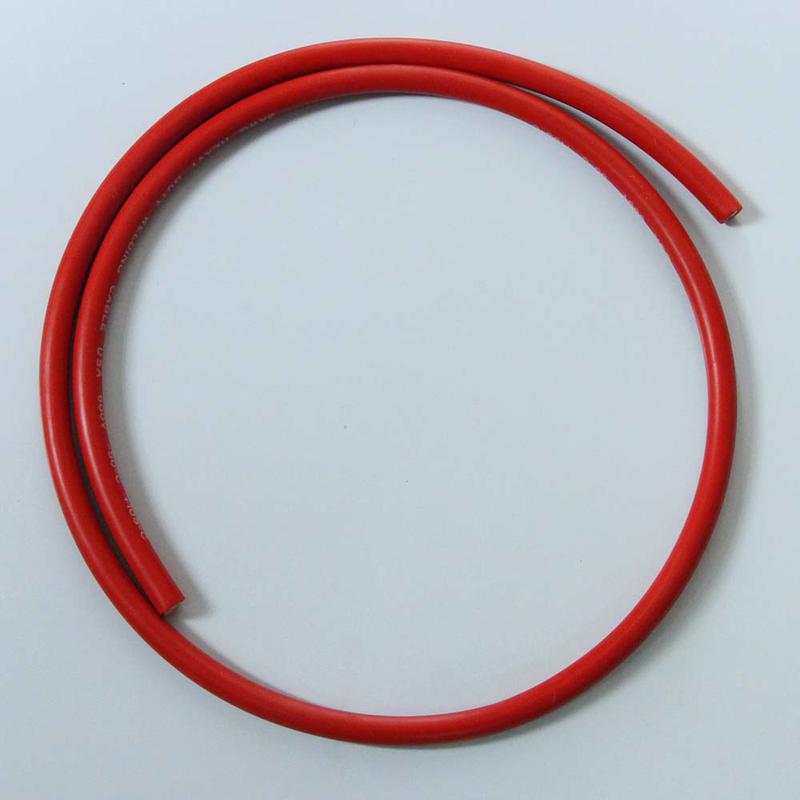

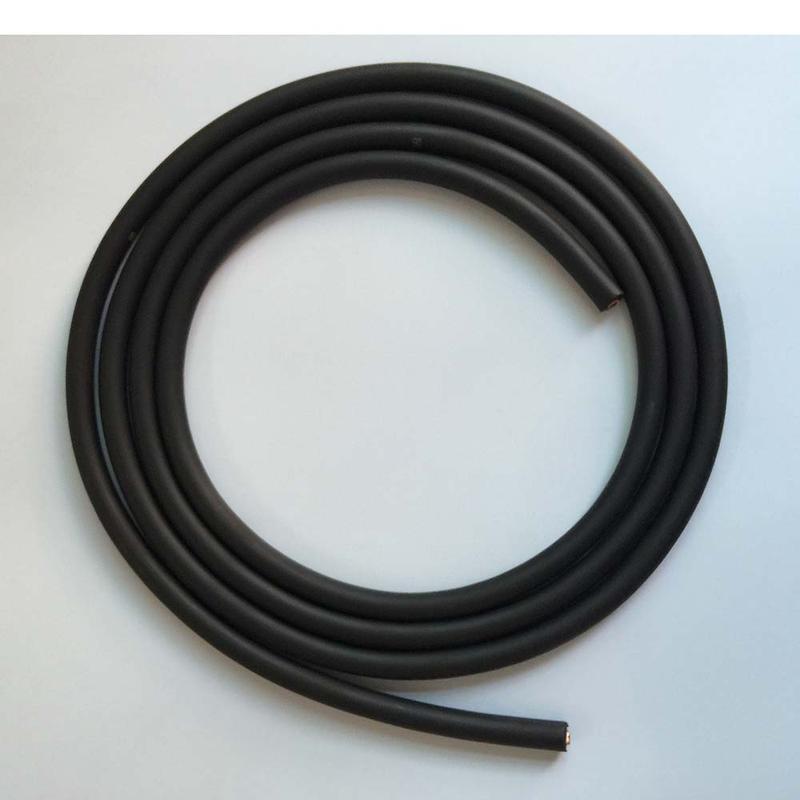

USA AWG SIZE WELDING CABLE

Application and Description

These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them esistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrol. These cables are also ideal for outside installation in dry, moist and wet areas.

Standard and Approval

IEC 60332.3, IEC 60754.1, ROHS compliant

Technical Characteristics

Working voltage: 600 volts
Test voltage: 1000 volts
Flexing bending radius: 12.0 x Ø
Fixed bending radius: 7.5 x Ø
Flexing Temperature: -25º C to +80º C
Fixed Temperature: -40º C to +80º C
Flame retardant: IEC 60332.1

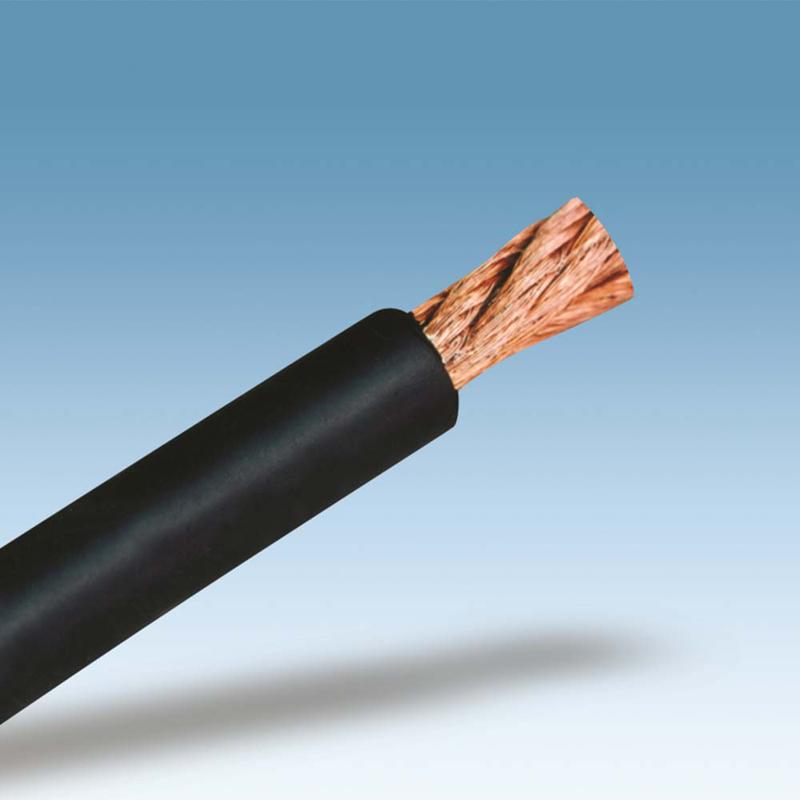

- Extra fine bare copper strands
- Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383

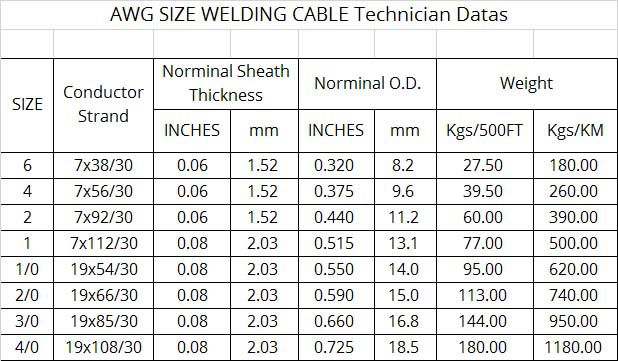

- Strands to VDE-0295 as listed below
- Synthetic or paper separator over core
- EPDM
